Matična ploča Gigabyte GA-B650 ELITE AX ICE, AMD B650, AM5, ATXID EK000623072
Matična ploča Gigabyte GA-B650 ELITE AX ICE, AMD B650, AM5, ATXID: EK000623072
U APPu kupi i tisućicu pokupi! Registriraj se, obavi kupnju u aplikaciji u iznosu većem od 50 € i automatski ulaziš u izvlačenje za nagradu od 1000 €.
Više saznaj ovdje.
Iskoristi mogućnost plaćanja do 24 rate!
- Cijena
- 222,99 €
Dostavljamo već od 13.04.2026
Jamstvo: 3 god
Platite gotovinom pri preuzimanju, Internet bankarstvom, karticama jednokratno i na rate
Povrat robe moguć unutar 14 dana
Vaš proizvod je dodan u košaricu
Pregled narudžbe

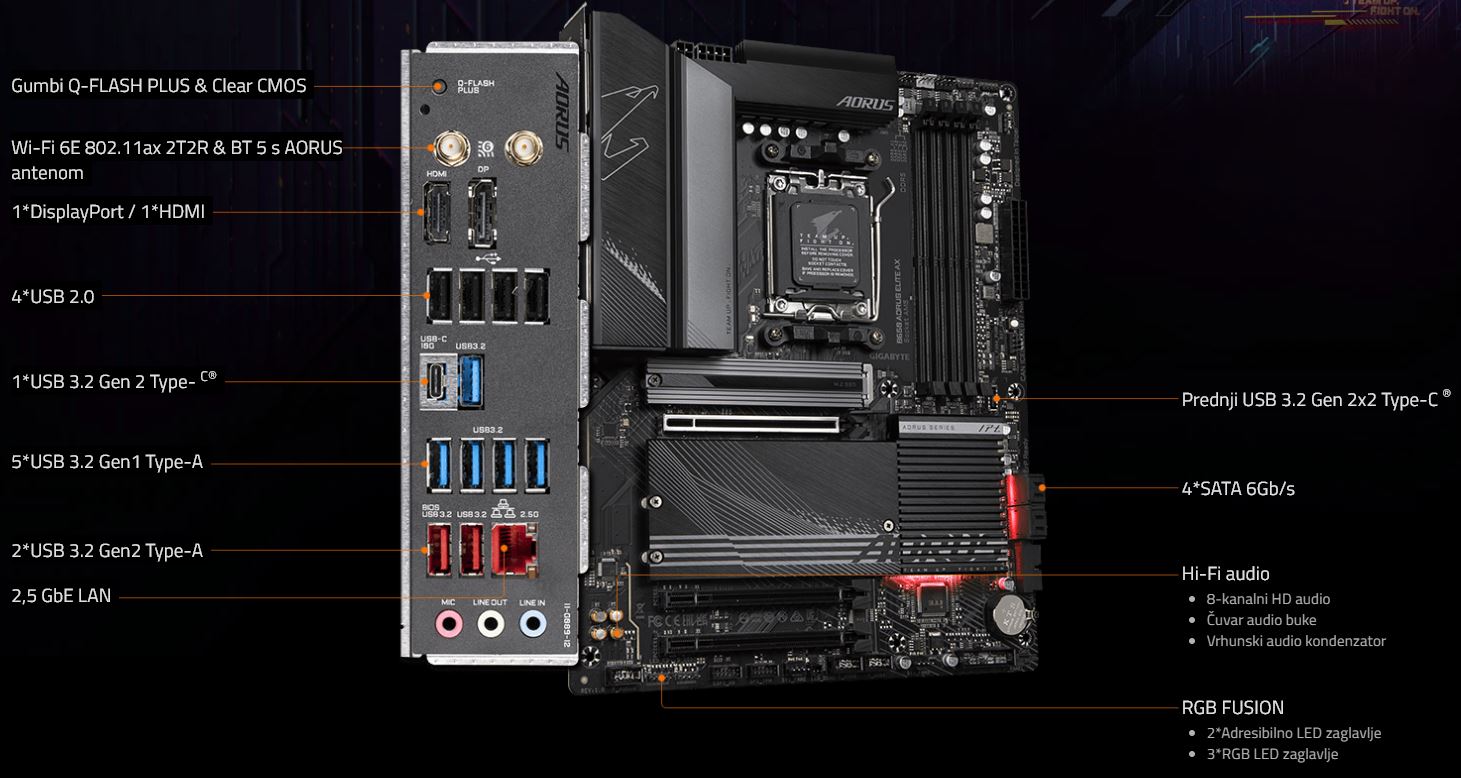

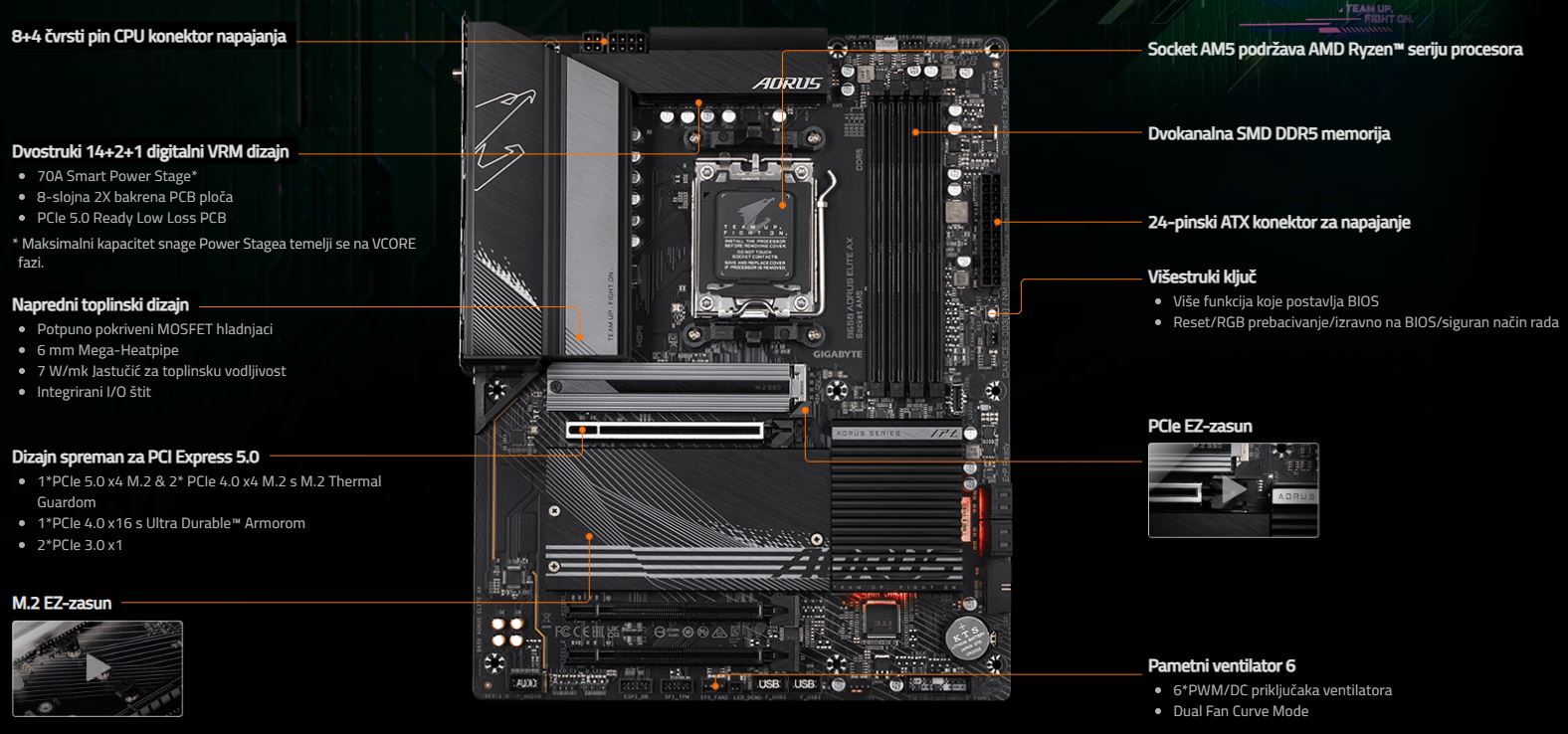

B650 AORUS ELITE AX
- AMD Socket AM5: Podržava AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 seriju procesora
- Neusporediva izvedba: Twin 14*+2+1 faza digitalnog VRM rješenja
- Dvokanalni DDR5: 4*SMD DIMM-ovi s podrškom za AMD EXPO™ i Intel® XMP memorijski modul
- Sljedeća generacija pohrane: 1*PCIe 5.0 x4 i 2*PCIe 4.0 x4 M.2 konektora
- Potpuno pokriveni Heatpipe & M.2 Thermal Guard: za osiguravanje VRM stabilnosti napajanja i 25110 PCIe 5.0 M.2 SSD performansi
- EZ-zasun: PCIe x16 utor i M.2 konektori s brzim otpuštanjem i dizajnom bez vijaka
- Brze mreže: 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Prošireno povezivanje: DP, HDMI, stražnji USB-C ® 10 Gb/s, prednji USB-C ® 20 Gb/s
- Pametni ventilator 6: ima više senzora temperature, hibridne priključke ventilatora s FAN STOP
Q-Flash Plus：Ažurirajte BIOS bez instaliranja CPU-a, memorije i grafičke kartice
* 7+7 faza paralelnog dizajna napajanja
| ZNAČAJKA | OPIS |
|---|---|
| CPU |
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer "CPU Support List" for more information.) |
| ČIPSET | AMD B650 |
| MEMORIJA |
Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| UGRAĐENA GRAFIKA |
Integrirani grafički procesor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| AUDIO |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| BEŽIČNA KOMUNIKACIJA |
AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| UTORI ZA PROŠIRENJE |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| SUČELJE ZA POHRANU |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |

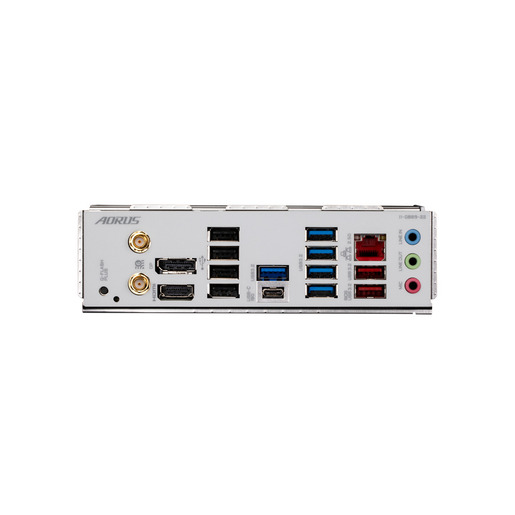

CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 ports 4 x USB 3.2 Gen 1 ports Chipset: 4 x USB 2.0/1.1 ports 2 x USB 3.2 Gen 1 ports |
| INTERNA I/O KONEKTORI |
1 x 24-pinski ATX glavni konektor za napajanje 1 x 8-pinski ATX 12V konektor za napajanje 2 x M.2 Socket 3 konektora 4 x SATA 6Gb/s konektora 1 x priključak za CPU ventilator 1 x priključak za kućište ventilator 1 x USB 3.2 Gen 2x2 Type-C® konektor 2 x USB 3.2 Gen 1 konektora 2 x USB 2.0/1.1 konektora 1 x priključak za prednje audio konektore 1 x SPDIF konektor 1 x TPM konektor |
| DIMENZIJE | ATX: 305 x 244 mm (12.0 x 9.6 in) |
| MONTIRANJE KUTIJE | 4 x 5.25-in, 2 x 3.5-in, 2 x 2.5-in |
| OPERATIVNI SUSTAV | Windows 10 (64-bit) / Windows 11 (64-bit) (Svi drajveri su dostupni na službenoj web stranici ASUS-a.) |
| Tip proizvoda | Matične ploče |
| Jamstvo | 3 god |
| Brand | Gigabyte |
| USB3.1 gen1 | 0 |
| Podržani taktovi memorije | DDR5 Do 8000(OC) |
| Mreža matične ploče | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Zvuk (matične ploče) | 7.1 |
| Socket | AM5 |
| USB type C | 1 kom |
| USB 3.0 | 0 kom |
| USB 2.0 | 4 kom |
| M.2 | 3 |
| U.2 | 0 |
| Thunderbolt | 0 |
| COM | Ne |
| Podržani RAID | Da |
| PS/2 utor za miš | Ne |
| PS/2 utor za tipkovnicu | Ne |
| LPT | Ne |
| Tip memorije | DDR5 |
| Intel Optane Ready | Ne |
| Broj HDMI | 1 |
| DVI | 0 |
| Broj DisplayPort | 1 kom |
| D-Sub | 0 |
| Broj memorijskih utora | 4 |
| Bluetooth | Da |
| 24-pinski konektor | 1 |
| 20-pinski konektor | 0 |
| USB 3.2 gen2 | 5 |
| USB 3.1 gen2 | 0 |
| SATA III | 4 |
| RJ 45 | 1 |
| PCIe x4 | 0 |
| PCIe x8 | 0 |
| PCIe x1 | 1 |
| PCIe x16 | 2 |
| PCI | 0 |
| Optički izlaz | Ne |
| Max. Količina memorije (GB) | 256 GB |
| Integrirani procesor | Ne |
| Format | ATX |
| Chipset | AMD B650 |
