Matične ploče serije ASUS Prime B450M II pružaju čvrstu osnovu potrebnu za vašu prvu izgradnju, plus fleksibilnost za rast s vašim ambicijama. Spojili smo sve dobre stvari koje su upakirane u AMD Ryzen™ procesore s bitnim ASUS dizajnom i inženjeringom, tako da imate koristi od vodećih tehnologija u industriji — uključujući automatizirano podešavanje sustava, sveobuhvatne kontrole hlađenja i impresivan ugrađeni audio. Kada gradite s matičnom pločom serije ASUS Prime B450M II, gradite pametno, jednostavno i pristupačno.
Fleksibilne kontrole hlađenja
Softver Fan Xpert pruža sveobuhvatnu kontrolu nad ventilatorima sustava. Način rada Auto-Tuning inteligentno konfigurira sve parametre jednim klikom. Tu je i Extreme Quiet način rada koji smanjuje brzinu ventilatora kućišta ispod zadanog minimuma kako bi vaš sustav bio tih kao šapat prilikom obavljanja laganih zadataka. Ventilatorima se također može upravljati putem UEFI BIOS-a.
Precizna digitalna kontrola snage
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
PRIME B450M-K II projektiran je s nizom hibridnih ventilatorskih konektora i ima sveobuhvatne kontrole hlađenja koje je moguće konfigurirati putem softvera Fan Xpert ili putem UEFI BIOS-a, osiguravajući da vaša oprema ostane hladna i stabilna pod intenzivnim radnim opterećenjima.
PCIe 3.0 M.2 (do 32 Gbps)
M.2 utor podržava brzinu prijenosa podataka do 32Gbps putem x4 PCI Express® 3.0 propusnosti. To je savršen izbor za pogon operativnog sustava ili aplikacije, pružajući brz pristup podacima.
| Model |

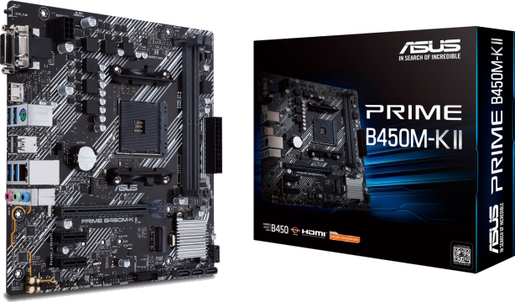

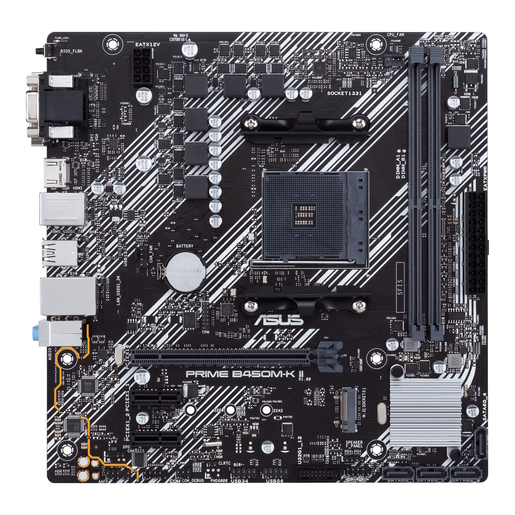

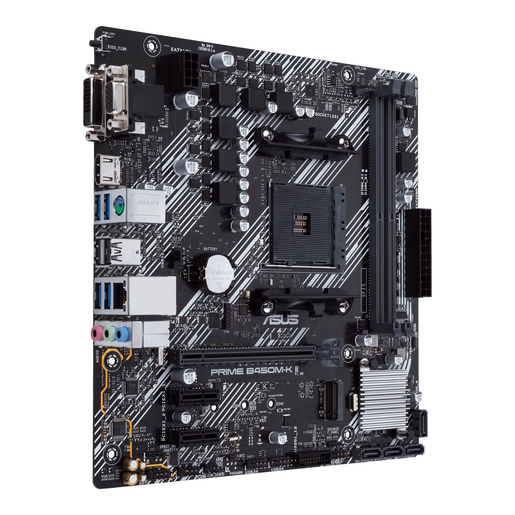

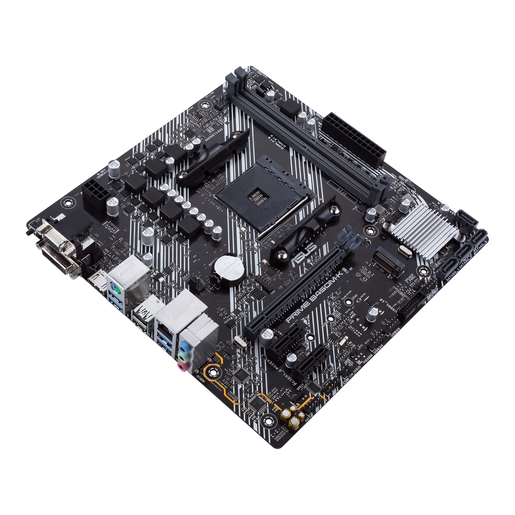

PRIME B450M-K II |
| CPU |
* Refer to www.asus.com for CPU support list.,AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors * |
| Chipset |
AMD B450 |
| Memory |
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *, 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors ,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* The maximum memory frequency supported varies by processor. |
| Graphic |
1 x HDMI™ port,Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *,*Graphics specifications may vary between CPU types. |
| Expansion Slots |
3rd/2nd/1st Gen AMD Ryzen™ Processors ,1 x PCIe 3.0 x16 (x4 mode), AMD B450 chipset ,1 x PCIe 3.0 x16 (x16 mode),1 x PCIe 3.0 x16 (x8 mode), AMD Athlon™ with Radeon™ Vega Graphics Processors ,2 x PCIe 2.0 x1 |
| Storage |
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports , Athlon™ with Radeon™ Vega Graphics Processors : , 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : , AMD B450 chipset : ,1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode),4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10 |
| LAN |
ASUS LANGuard,Realtek® RTL8111H |
| Audio |
Realtek ALC887/8977.1-Channel High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- LED-illuminated design,- Audio Shielding,- Dedicated audio PCB layers,- Premium Japanese audio capacitors, Audio Feature : ,* Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| USB Ports |
Front USB Port ( Total 6 ), Rear USB Port ( Total 6 ),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 2.0 port(s)(2 x Type-A),2 x USB 3.2 Gen 1 port(s),4 x USB 2.0 port(s) |
| Software Features |
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU DIGI+
VRM Fan Xpert
PC Cleaner
- EZ update
- System Information
ASUS CPU-Z
AI Charger
ASUS EZ Installer
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode |
| ASUS Special Features |
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O ASUS Q-Design
- ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution
- Aluminum heatsink design ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED ASUS Lighting Control |
| Back I/O Ports |

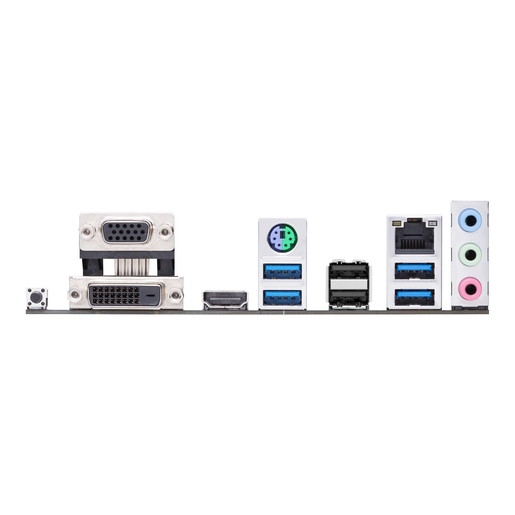

1 x BIOS FlashBack ™ Button(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s) |
| Internal I/O Ports |
1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin),1 x CPU Fan connector(s) (1 x 4-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x SPI TPM header,1 x COM port(s) connector(s),4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x COM port header,1 x Speaker connector,1 x Chassis Fan connector(s) (1 x 4-pin) |
| Accessories |
2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,1 x M.2 Anchor,1 x Supporting DVD,2 x SATA 6Gb/s cable(s) |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System |
Windows® 7 64-bit *,Windows® 10 64-bit |
| Form Factor |
mATX Form Factor,8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
| Note |
*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor. |
