| Socket | AMD Socket AM5 |
| Podržani procesori | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Čipset | AMD X870E |
| Memorija | 4x DDR5 DIMM, do 256 GB (64 GB po utoru) |
| Podržane brzine memorije | DDR5 do 8200(OC) MHz |
| Memorijska arhitektura | Dual Channel |
| Tip memorije | Non-ECC Un-buffered |
| EXPO / XMP | AMD EXPO™ i XMP podrška |
| Integrirana grafika | AMD Radeon™ Graphics (ovisno o CPU-u) |
| Video izlazi | 2x USB4® Type-C (DP 1.4, do 3840x2160@240Hz), 1x HDMI 2.1 (4096x2160@60Hz), 1x prednji HDMI 1.4 (1920x1080@30Hz) |
| Audio | Realtek® ALC1220, HD Audio 2/4/5.1/7.1, S/PDIF Out, DSD podrška (Line Out) |
| LAN | Realtek® 2.5GbE LAN |

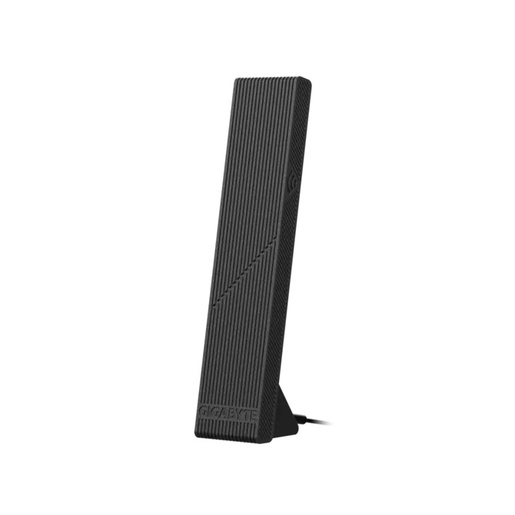

| Wi-Fi | Qualcomm® Wi-Fi 7 (QCNCM865, 2.4/5/6 GHz, 11be 320MHz) |
| Bluetooth | 5.4 |
| PCIe x16 (glavni) | 1x PCIe 5.0 x16 (dijeli propusnost s M2B_CPU/M2C_CPU; radi do x8 kad su popunjeni) |
| Dodatni PCIe utori | 1x PCIe 4.0 x4, 1x PCIe 3.0 x4 |
| M.2 | 4x M.2 (3x CPU: PCIe 5.0; 1x Chipset: PCIe 4.0) |
| SATA | 4x SATA 6Gb/s |
| RAID | RAID 0/1/5/10 (NVMe* i SATA; RAID 5 NVMe samo za Ryzen™ 9000) |
| USB (stražnji panel) | 2x USB4®, 3x USB 3.2 Gen2 (Type-A), 4x USB 3.2 Gen1, 2x USB 2.0 |
| USB (interno) | 1x USB-C Gen2x2 header, 2x USB 3.2 Gen1 headera, 2x USB 2.0 headera |
| Napajanje | 1x 24-pin ATX + 2x 8-pin ATX 12V |
| Ventilatori | 1x CPU fan, 1x CPU pump, 4x system fan, 2x system pump |
| RGB / ARGB headeri | 3x Addressable RGB Gen2, 1x RGB LED |
| Dodatno | Power tipka, Reset tipka, Noise detection header, 2x temp. sensor headera |

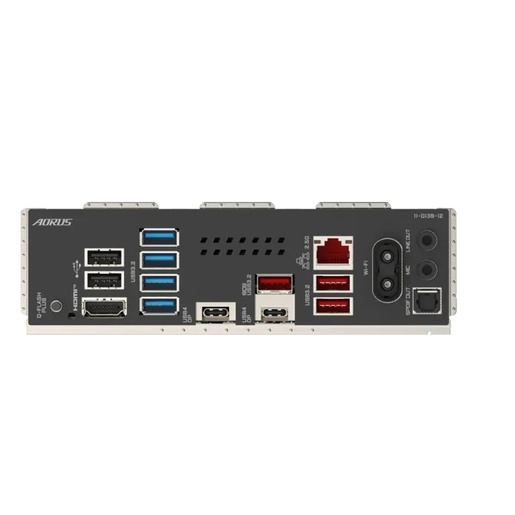

| Back panel | Q-Flash Plus tipka, 2x USB 2.0, 1x HDMI, 4x USB 3.2 Gen1, 2x USB4®, 3x USB 3.2 Gen2 (Type-A), 1x RJ-45, 2x Wi-Fi antena, 1x optički S/PDIF, 2x audio jack |
| BIOS | AMI UEFI BIOS, 1x 256 Mbit flash |
| Značajke | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Podržani OS | Windows 11 64-bit |
| Format | ATX (30,5 cm x 24,4 cm) |
