| Socket | LGA1700 |
| Podržani procesori | Intel® Core™ 14./13./12. gen, Pentium® Gold, Celeron® |
| Čipset | Intel® Z790 Express |
| Memorija | 4x DDR5 DIMM, do 256 GB (64 GB po utoru) |
| Podržane brzine memorije | DDR5 do 7600(O.C.) MHz (ovisno o CPU-u) |
| Memorijska arhitektura | Dual Channel |
| ECC podrška | ECC Un-buffered (radi u non-ECC modu) |
| XMP | Podrška za XMP |
| Integrirana grafika | Intel® HD Graphics (ovisno o CPU-u) |
| Video izlazi | 1x HDMI 2.1 (4096x2160@60Hz), 1x DP 1.2 (4096x2304@60Hz) |
| Audio | Realtek® HD Audio, 2/4/5.1/7.1-channel + S/PDIF |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Wi-Fi | Wi-Fi 6E (Intel® AX211 ili Realtek® RTL8852CE, ovisno o reviziji) |
| Bluetooth | 5.3 |
| PCIe x16 (glavni) | 1x PCIe 5.0 x16 |
| Dodatni PCIe utori | 1x PCIe 4.0 x4, 1x PCIe 3.0 x1 (x16 fizički), 2x PCIe 3.0 x1 |
| M.2 | 3x M.2 (PCIe 4.0 x4/x2; 1x SATA podrška) |
| SATA | 4x SATA 6Gb/s |
| RAID | RAID 0/1/5/10 (NVMe i SATA) |
| USB (stražnji panel) | 1x USB-C Gen2, 1x USB 3.2 Gen2 Type-A, 4x USB 3.2 Gen1, 2x USB 2.0 |
| USB (interno) | 1x USB-C header (Gen1), 1x USB 3.2 Gen1 header, 2x USB 2.0 headera |
| Napajanje | 1x 24-pin ATX + 2x 8-pin ATX 12V |
| Ventilatori / pumpe | 1x CPU fan, 1x CPU pump, 4x system fan/pump |
| RGB / ARGB headeri | 2x Addressable LED |

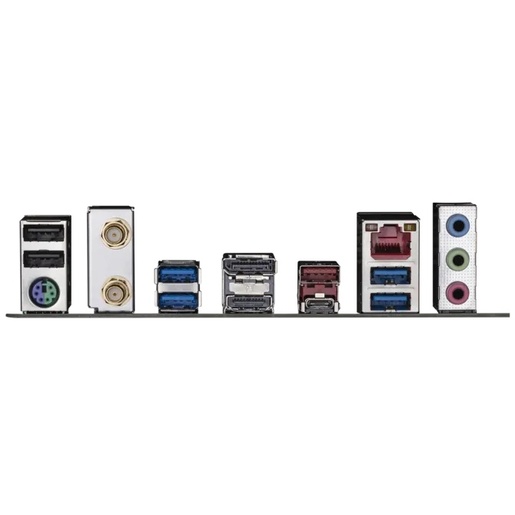

| Back panel | 1x PS/2, 1x USB-C Gen2, 1x USB 3.2 Gen2, 4x USB 3.2 Gen1, 2x USB 2.0, 2x Wi-Fi antena, 1x HDMI, 1x DP, 1x RJ-45, 3x audio jack |
| BIOS | AMI UEFI BIOS, 1x 256 Mbit flash |
| Značajke | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Podržani OS | Windows 11 64-bit, Windows 10 64-bit |
| Format | ATX (30,5 cm x 24,4 cm) |
